( step 1 )
Primary Pad
(Ground-Mounted)
High-frequency AC current in the primary coil creates a powerful electromagnetic field. This coil is sealed in weatherproof housing and installed flush with the pavement.
The Science Behind Wireless Fleet Charging
Wireless Power Transfer, Explained
Think of it like wireless phone charging, but for trucks and buses. WAVE’s inductive charging uses electromagnetic fields to transfer power across an air gap with remarkable efficiency and safety.
( step 2 )
Secondary Pad
(Vehicle-Mounted)
The vehicle’s pickup coil captures the electromagnetic field and converts it back to electrical energy. Advanced pairing and positioning systems ensure optimal alignment.
( step 3 )
Smart Power Electronics
Onboard converters condition the received power for battery charging, while intelligent controls optimize power transfer by communicating with the vehicle’s battery management system to match the battery state and charging requirements.
( step 4 )
Real-Time Monitoring
The vehicle's battery management system provides real-time feedback to WAVE's systems to ensure the vehicle is always receiving the optimum power level.
Technical Specifications
Power & Performance
Power Output
125kW to 500kW+
Efficiency
92%+ total system efficiency
Air Gap Tolerance
Up to 8 inches
Safety Features
Zero Exposed Live Parts
All electrical components sealed and protected
EMF Compliance
Meets all international electromagnetic field standards
Weather Resistant
All-weather operation
Fail-Safe Design
Multiple redundant safety systems
UL Field Certified
Third-party safety certification
Environmental Specifications
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Vibration Resistant
Designed for heavy vehicle traffic
Safety by Design, Proven in Practice
No Live Electrical Contacts
Unlike plug-in chargers, wireless systems have zero exposed electrical contacts. This eliminates risks of: arc faults, contact corrosion, vandalism and theft.
Cord-Free Safety
By eliminating heavy charging cables, the system removes trip hazards, avoids collisions between vehicles and charging equipment, and prevents injuries from exposed metal on worn or damaged cords.
Sealed Systems

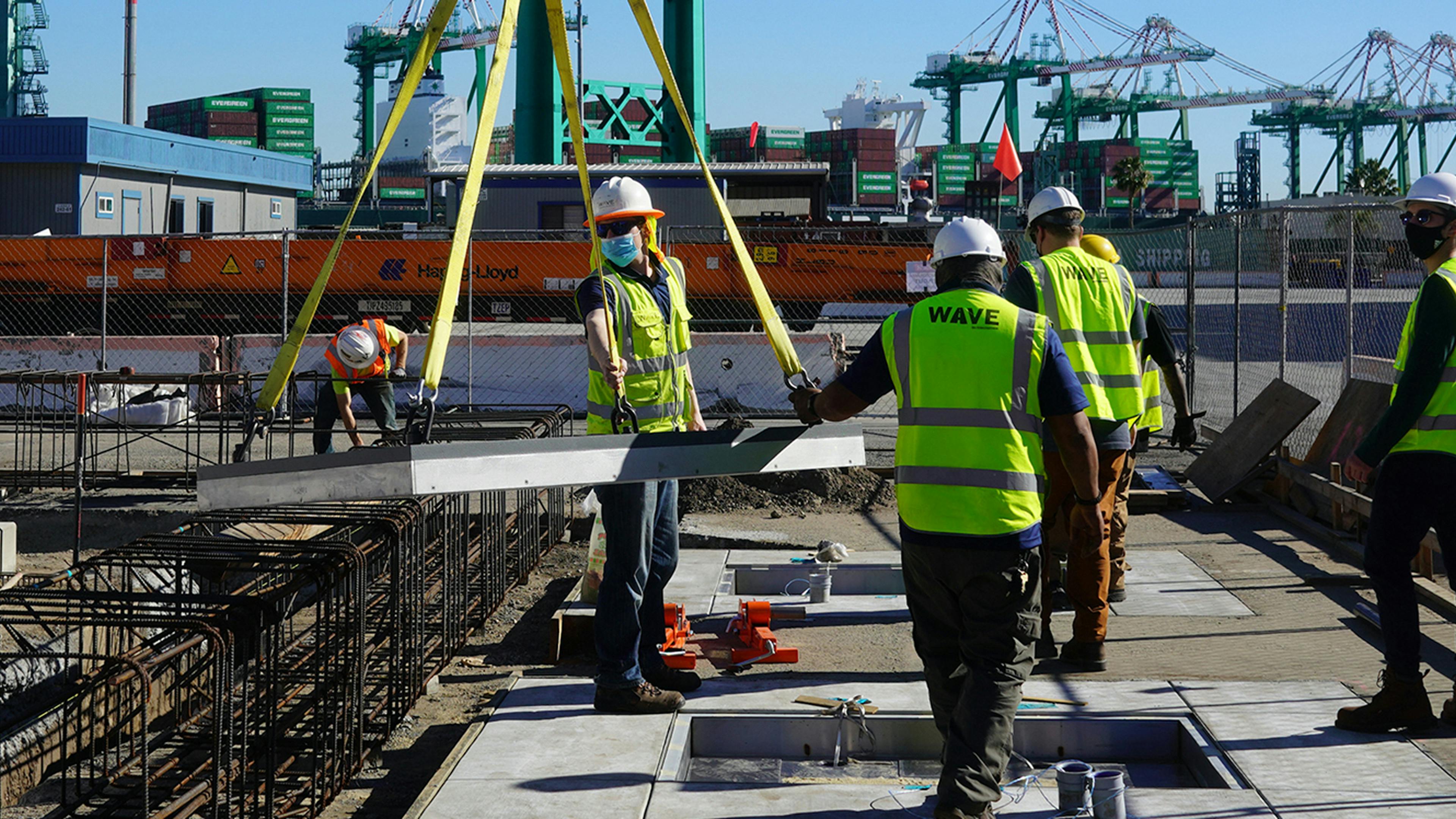

All electrical components are sealed and installed below ground level, or in an electrical cabinet, protecting maintenance personnel from electrical hazards while enabling easy access for service.
Industry-Leading Efficiency at Scale
System Efficiency
92%+ Total Efficiency
WAVE systems achieve 92%+ efficiency from grid to vehicle battery, comparable to the best wired charging systems.
Power Electronics Optimization
Advanced power electronics minimize losses through
High-frequency switching at optimal points
Temperature-compensated operation
Resonant circuit tuning
Real-time impedance matching
Operational Efficiency
Reduced Infrastructure Requirements
High-power wireless charging enables opportunity charging, reducing total charging infrastructure needs by 30-50% compared to traditional depot charging.
Maximized Vehicle Utilization
Vehicles can charge during normal operational stops (passenger boarding, loading/unloading), eliminating dedicated charging time and maximizing route efficiency.
Wireless vs. Wired: The Complete Picture
Operational Advantages
| Feature | WAVE Wireless | Plug-In Charging |
|---|---|---|
Connection Time | Automatic (0 seconds) | Average 60 seconds to plug in and 60 to unplug |
Vandalism Risk | Zero (no exposed parts) | High (cables, connectors exposed, theft of copper cables) |
Equipment Lifespan | Continued operations for 7+ years | 5-7 years on average |
Equipment Damage | Sealed systems protected | Cables damaged by vehicles/weather |
Lower Total Cost of Ownership
Reduced charging infrastructure requirements (30-50% fewer units needed)
Higher vehicle utilization rates
Minimal maintenance (sealed, protected systems)
Faster ROI: Wireless charging systems typically achieve ROI faster than equivalent plug-in installations due to reduced infrastructure costs and improved operational efficiency.
Reduced operational training and procedures
